krotos::ResourceLock Class Reference

Class used to manage access to a resource from multiple users / threads In this version, requests must pass in a unique identifier ID. Doing so allows keeping track of access requests seperately. This is necessary because it can happen that the same caller can request access many times, even after it has been granted access. Conversely a caller may call finishedAccessing() many times after access finished has already been registered. This ID could in fact be simply a unique integer, however, using a human readable String is a boon to debugging when sent to the logger, and the CPU overhead should not be high as these requests are not prohibitively frequent ... about 25 Hz in the case of the grain display redraw, and audio block rate in the case of access to audio data. TODO: perhaps some profiling if in doubt ? More...

#include <ResourceLock.h>

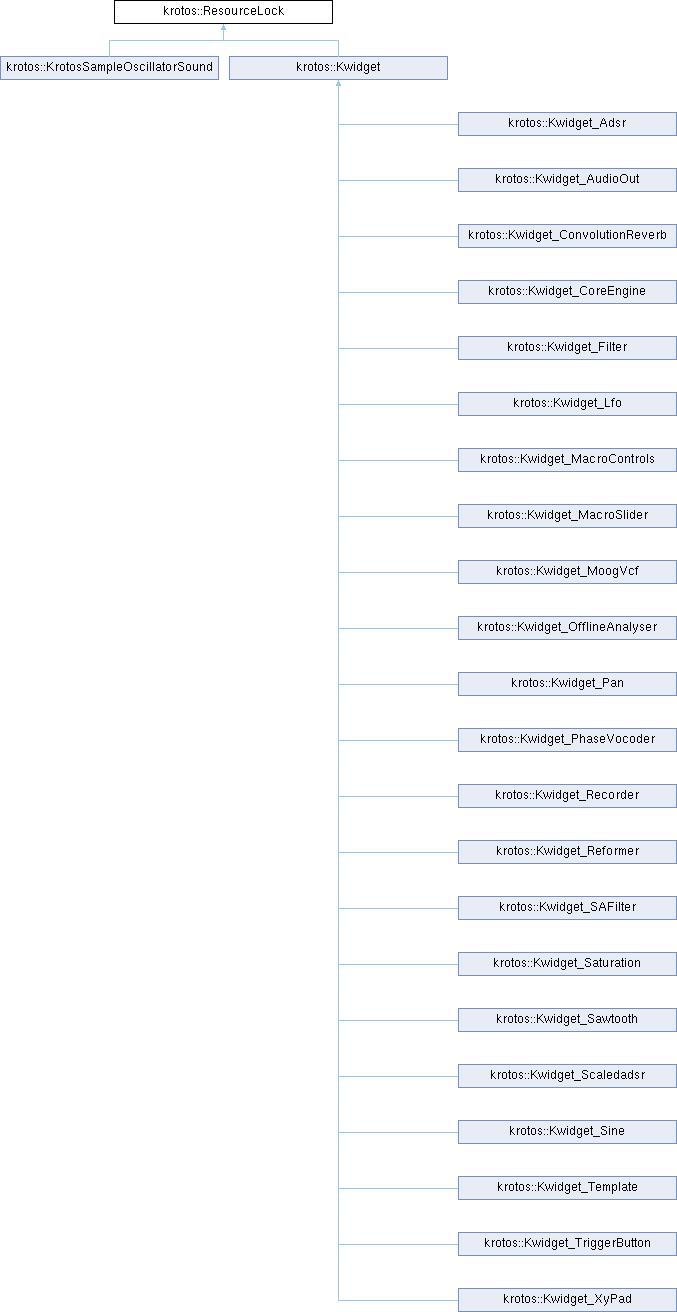

Inheritance diagram for krotos::ResourceLock:

Public Member Functions
	ResourceLock ()
bool	requestAccess (const StringRef id)
	Called by a client to request access to the resource.
bool	hasAccess (const StringRef id) const
	Called by a client to enquire whether it has access to the resource.
void	finishedAccessing (const StringRef id)
	Called by a client to inform the resource that it no longer needs access.
void	setAccessible (bool isAccessible)
	Called by the resource to grant or deny access to clients.

Private Attributes
CriticalSection	objectLock
StringArray	m_clientList
volatile std::atomic< bool >	m_isAccessible {false}
WaitableEvent	m_waitForZeroUsers

Static Private Attributes
static const int	DSP_THREAD_WAIT_MAX_MS {3000}

Detailed Description

Class used to manage access to a resource from multiple users / threads In this version, requests must pass in a unique identifier ID. Doing so allows keeping track of access requests seperately. This is necessary because it can happen that the same caller can request access many times, even after it has been granted access. Conversely a caller may call finishedAccessing() many times after access finished has already been registered. This ID could in fact be simply a unique integer, however, using a human readable String is a boon to debugging when sent to the logger, and the CPU overhead should not be high as these requests are not prohibitively frequent ... about 25 Hz in the case of the grain display redraw, and audio block rate in the case of access to audio data. TODO: perhaps some profiling if in doubt ?

Constructor & Destructor Documentation

ResourceLock()

krotos::ResourceLock::ResourceLock ( )

inline

Member Function Documentation

finishedAccessing()

void krotos::ResourceLock::finishedAccessing

(

const StringRef

id

)

Called by a client to inform the resource that it no longer needs access.

Parameters

id	Supply the same unique identifying string as when you requested access

Returns

Returns true if access granted, false if access denied

hasAccess()

bool krotos::ResourceLock::hasAccess

(

const StringRef

id

)

const

Called by a client to enquire whether it has access to the resource.

Parameters

id	Supply a unique identifying string when you request access Supply the same string used when calling requestAccess()

Returns

Returns true if has access, false if not

requestAccess()

bool krotos::ResourceLock::requestAccess

(

const StringRef

id

)

Called by a client to request access to the resource.

Parameters

id	Supply a unique identifying string when you request access Supply the same string when you call finishedAccessing()

Returns

Returns true if access granted, false if access denied

setAccessible()

void krotos::ResourceLock::setAccessible

(

bool

isAccessible

)

Called by the resource to grant or deny access to clients.

Parameters

isAccessible

- set true to grant access, false to deny access

Member Data Documentation

DSP_THREAD_WAIT_MAX_MS

const int krotos::ResourceLock::DSP_THREAD_WAIT_MAX_MS {3000}

staticprivate

m_clientList

StringArray krotos::ResourceLock::m_clientList

private

m_isAccessible

volatile std::atomic<bool> krotos::ResourceLock::m_isAccessible {false}

private

m_waitForZeroUsers

WaitableEvent krotos::ResourceLock::m_waitForZeroUsers

private

objectLock

CriticalSection krotos::ResourceLock::objectLock

private

---

The documentation for this class was generated from the following files:

• krotos_dsp/utilities/resource_lock/ResourceLock.h
• krotos_dsp/utilities/resource_lock/ResourceLock.cpp
