krotos::KwidgetGUI Class Reference

Interface for a UI Component that controls a KwidgetProcessor. More...

#include <KwidgetGUI.h>

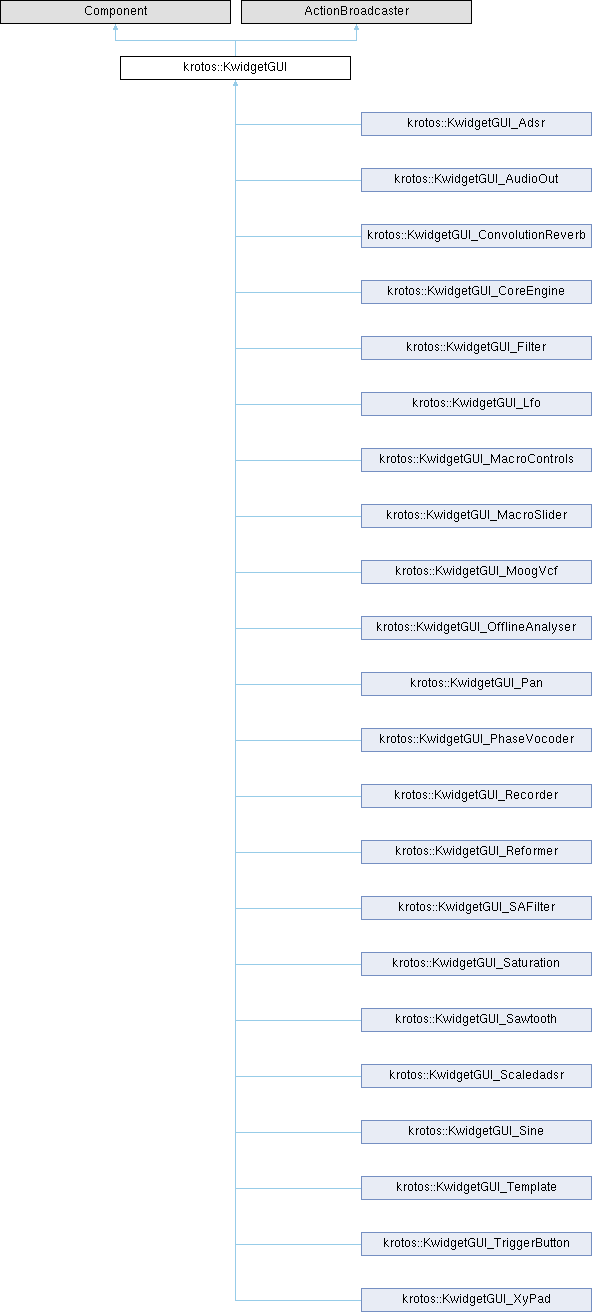

Inheritance diagram for krotos::KwidgetGUI:

Public Types
enum class	RenderStyle {   normal = 0 , borderless , borderless_with_buttons , minimised ,   NUM_STYLES }

Public Member Functions
	KwidgetGUI (Kwidget &owner)
	~KwidgetGUI () override=default
void	moved () override
void	paint (Graphics &g) override
void	resized () override
void	mouseDown (const MouseEvent &event) override
const String &	getKwidgetType () const
const String &	getKwidgetID () const
void	setRenderStyle (RenderStyle newStyle)
int	divideIntByFloat (int dividend, float divisor)
int	multiplyIntByFloat (int mult, float factor)
virtual void	finalSetup ()
void	ignorePadding (bool ignore)
TopBarComponent &	getTopBarComponent ()
Kwidget &	getOwner ()

Public Attributes
std::function< void(const String &)>	onDelete

Protected Member Functions
std::unique_ptr< SliderParameterAttachment >	createParameterAttachment (const String &paramID, Slider &slider)
std::unique_ptr< ButtonParameterAttachment >	createParameterAttachment (const String &paramID, Button &button)
std::unique_ptr< ComboBoxParameterAttachment >	createParameterAttachment (const String &paramID, ComboBox &comboBox)
std::unique_ptr< ParameterAttachment >	createParameterAttachment (const String &paramID, std::function< void(float)> callback)
std::unique_ptr< LabelCustomParameterAttachment >	createCustomParameterAttachment (const String &paramID, Label &label)
template<typename AttachedComponentType >
void	addAttachedComponent (AttachedComponentType &component, const String &paramID, bool isDraggable=true)
template<typename AttachedComponentType >
void	addAttachedComponent (Component &parent, AttachedComponentType &component, const String &paramID, bool isDraggable=true)
void	addParameterCallback (const String &paramID, std::function< void(float)> callback)

Protected Attributes
bool	m_ignorePadding {false}
Rectangle< int >	m_currentBounds
TextButton	m_selectButton
TextButton	m_deleteButton
Colour	m_borderColour {Colours::fuchsia}
TopBarComponent	m_topBarComponent
RenderStyle	m_renderStyle {RenderStyle::normal}

Private Attributes
Kwidget &	m_owner
UndoManager *	m_undoManager {nullptr}
OwnedArray< KParameter::AsyncListenerObject >	m_parameterCallbacks
ComponentDragger	m_dragger
bool	m_allowDrag {false}

Detailed Description

Interface for a UI Component that controls a KwidgetProcessor.

The KwidgetGUI class provides an interface for creating and managing the graphical user interface (GUI) of a specific type of Kwidget. Inherit from this class to define the UI of a custom Kwidget.

This class offers various functionalities to manage the UI, including rendering, resizing, and handling mouse events. Additionally, KwidgetGUI inherits from ActionBroadcaster to facilitate the broadcasting of analytics events and other actions to registered listeners.

Member Enumeration Documentation

RenderStyle

enum class krotos::KwidgetGUI::RenderStyle

strong

Enumerator
normal
borderless
borderless_with_buttons
minimised
NUM_STYLES

Constructor & Destructor Documentation

KwidgetGUI()

krotos::KwidgetGUI::KwidgetGUI

(

Kwidget &

owner

)

~KwidgetGUI()

krotos::KwidgetGUI::~KwidgetGUI ( )

overridedefault

Destructor.

Member Function Documentation

addAttachedComponent() [1/2]

template<typename AttachedComponentType >

void krotos::KwidgetGUI::addAttachedComponent ( AttachedComponentType & component, const String & paramID, bool isDraggable = true )

inlineprotected

Code duplication saving helper function for an AttachedSlider or AttachedToggleButton, to addAndMakeVisible, enable drag and drop, and create a parameter attachment.

addAttachedComponent() [2/2]

template<typename AttachedComponentType >

void krotos::KwidgetGUI::addAttachedComponent ( Component & parent, AttachedComponentType & component, const String & paramID, bool isDraggable = true )

inlineprotected

Code duplication saving helper function for an AttachedSlider or AttachedToggleButton, to addAndMakeVisible, enable drag and drop, and create a parameter attachment.

addParameterCallback()

void krotos::KwidgetGUI::addParameterCallback ( const String & paramID, std::function< void(float)> callback )

protected

Add an action to be performed when a specified parameter changes value.

Parameters

paramID	The ID of the parameter to listen to.
callback	The action to be performed when the parameter changes value.

createCustomParameterAttachment()

std::unique_ptr< LabelCustomParameterAttachment > krotos::KwidgetGUI::createCustomParameterAttachment ( const String & paramID, Label & label )

protected

createParameterAttachment() [1/4]

std::unique_ptr< ButtonParameterAttachment > krotos::KwidgetGUI::createParameterAttachment ( const String & paramID, Button & button )

protected

createParameterAttachment() [2/4]

std::unique_ptr< ComboBoxParameterAttachment > krotos::KwidgetGUI::createParameterAttachment ( const String & paramID, ComboBox & comboBox )

protected

createParameterAttachment() [3/4]

std::unique_ptr< SliderParameterAttachment > krotos::KwidgetGUI::createParameterAttachment ( const String & paramID, Slider & slider )

protected

createParameterAttachment() [4/4]

std::unique_ptr< ParameterAttachment > krotos::KwidgetGUI::createParameterAttachment ( const String & paramID, std::function< void(float)> callback )

protected

divideIntByFloat()

int krotos::KwidgetGUI::divideIntByFloat ( int dividend, float divisor )

inline

Helper function for dividing bounds (usually integers) by floats

finalSetup()

virtual void krotos::KwidgetGUI::finalSetup ( )

inlinevirtual

Your GUI can override this to get a callback when everything is created and after the first resize() is called

Reimplemented in krotos::KwidgetGUI_CoreEngine, and krotos::KwidgetGUI_Reformer.

getKwidgetID()

const String & krotos::KwidgetGUI::getKwidgetID

(

)

const

Get the ID of the Kwidget represented by this UI object (ex. "Sine0").

getKwidgetType()

const String & krotos::KwidgetGUI::getKwidgetType

(

)

const

Get the type of Kwidget represented by this UI object (ex. "Sine").

getOwner()

Kwidget & krotos::KwidgetGUI::getOwner

(

)

Get top level Kwidget

getTopBarComponent()

TopBarComponent & krotos::KwidgetGUI::getTopBarComponent ( )

inline

Return the topBarComponent.

ignorePadding()

void krotos::KwidgetGUI::ignorePadding ( bool ignore )

inline

Should this kwidget have padding around it's border

mouseDown()

void krotos::KwidgetGUI::mouseDown ( const MouseEvent & event )

override

Component MouseEvent overrides.

moved()

void krotos::KwidgetGUI::moved ( )

override

multiplyIntByFloat()

int krotos::KwidgetGUI::multiplyIntByFloat ( int mult, float factor )

inline

Helper function for multiplying bounds (usually integers) by floats

paint()

void krotos::KwidgetGUI::paint ( Graphics & g )

override

Perform any paint functions common to all Kwidgets here.

resized()

void krotos::KwidgetGUI::resized ( )

override

Resize the elements of this class using this function. Subclasses will use kwidgetResized() to set their bounds.

setRenderStyle()

void krotos::KwidgetGUI::setRenderStyle

(

RenderStyle

newStyle

)

Set the style we wish derived classes to use when they render themselves Derived classes have access to the style choice via protected member enum m_renderStyle

Member Data Documentation

m_allowDrag

bool krotos::KwidgetGUI::m_allowDrag {false}

private

m_borderColour

Colour krotos::KwidgetGUI::m_borderColour {Colours::fuchsia}

protected

m_currentBounds

Rectangle<int> krotos::KwidgetGUI::m_currentBounds

protected

m_deleteButton

TextButton krotos::KwidgetGUI::m_deleteButton

protected

m_dragger

ComponentDragger krotos::KwidgetGUI::m_dragger

private

m_ignorePadding

bool krotos::KwidgetGUI::m_ignorePadding {false}

protected

m_owner

Kwidget& krotos::KwidgetGUI::m_owner

private

m_parameterCallbacks

OwnedArray<KParameter::AsyncListenerObject> krotos::KwidgetGUI::m_parameterCallbacks

private

m_renderStyle

RenderStyle krotos::KwidgetGUI::m_renderStyle {RenderStyle::normal}

protected

m_selectButton

TextButton krotos::KwidgetGUI::m_selectButton

protected

m_topBarComponent

TopBarComponent krotos::KwidgetGUI::m_topBarComponent

protected

m_undoManager

UndoManager* krotos::KwidgetGUI::m_undoManager {nullptr}

private

onDelete

std::function<void(const String&)> krotos::KwidgetGUI::onDelete

Callback on deletion of the kwidget gui

---

The documentation for this class was generated from the following files:

• krotos_kwidget/kwidget/KwidgetGUI.h
• krotos_kwidget/kwidget/KwidgetGUI.cpp
