#include <Kwidget.h>

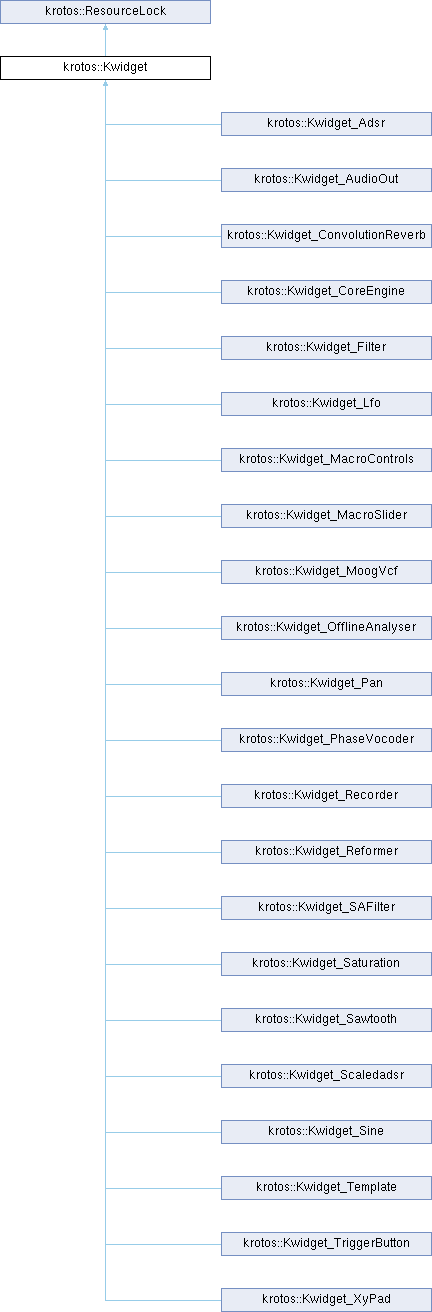

Inheritance diagram for krotos::Kwidget:

Classes
struct	Constants

class	ParameterInfo
	Holds the information needed to create a new Kwidget parameter. More...

Public Types
enum	DragID_Index { KwidgetID = 0 , ParameterID = 1 }

Public Member Functions
	Kwidget (const String &kwidgetType, const String &kwidgetID)

virtual	~Kwidget ()=default

void	init ()

std::unique_ptr< KwidgetProcessor >	createVoice ()

std::unique_ptr< KwidgetGUI >	createControls ()

KwidgetProcessor *	getVoice (int idx) const

int	getNumVoices () const

KwidgetProcessor *	getActiveVoice () const

virtual void	noteOn (int voiceIdx, int midiNote, float velocity)

virtual void	noteOff (int voiceIdx, float velocity)

virtual void	noteCleared (int voiceIdx)

virtual bool	isActive (int voiceIdx)

void	addModulator (const String &paramID, Kwidget *modulator, int modulatorIdx, float depth=0.99f, KAttachment::Polarity=KAttachment::Polarity::Bipolar)

void	removeModulator (const String &paramID, Kwidget *modulator, int modulatorIdx)

void	setModulatorDepth (const String &paramID, Kwidget *modulator, int modulatorIdx, float depth)

void	setModulatorPolarity (const String &paramID, Kwidget *modulator, int modulatorIdx, KAttachment::Polarity polarity)

const std::vector< std::shared_ptr< KParameter > > &	getParameters () const

KParameter *	getParameter (const String &parameterID) const noexcept
	Get a raw pointer to a KParameter belonging to this Kwidget's KwidgetProcessor. Useful for low overhead direct parameter access.

std::shared_ptr< KParameter >	getParameterToAttach (const String &parameterID) const noexcept
	Get a shared pointer to a KParameter, for use with KParameter::Listener objects and situations where the parameter lifetime goes beyond local scope.

CustomParameter *	getCustomParameter (const String &parameterID)

CustomParameterTree *	getCustomParameterTree (const Identifier &type)
	Get a CustomParameterTree belonging to this Kwidget.

template<typename T >
T *	getCustomParameter (const Identifier &type)
	Get the CustomParameterTree subclass object of the specified type.

void	notifyAllParametersListeners ()
	Call every parameter's value changed listeners with their current values.

const ValueTree &	getState ()

virtual void	setState (const ValueTree &newState, KwidgetAudioProcessor &processor)

void	flushState ()

bool	isModulator () const

int	getNumModulators () const

const String &	getKwidgetType () const

const String &	getKwidgetID () const

const String &	getKwidgetVersionFromCurrentState () const

String	getKwidgetVersion () const

virtual const String &	getKwidgetLabel ()

StringArray	getDragID (const String &parameterID)

virtual size_t	numGUIImplementations ()

virtual String	getGuiName (int)

virtual void	createNestedKwidgets (KwidgetAudioProcessor &)

bool	isAChildKwidget ()

std::vector< Kwidget * > &	getChildKwidgets ()

bool	isStateChanging ()

void	addChildKwidget (Kwidget *child)

void	removeChildKwidgetFromTree (String kwidgetID)

Kwidget *	findChildKwidget (String kiwdgetID)

void	addParameterCallback (const String &paramID, std::function< void(float)> callback)

void	addVersionedParameterCallback (StringRef kwidgetVersionTheParameterChangedIn, const String &paramID, std::function< void(float)> callback)
	Add an action to be performed when a specified parameter of a specific kwidget version changes value. This can be used to implement backwards compatibility when older versions of the kwidget state are loaded, and the parameters in newer versions may have been changed or removed.

int	getTemplateID ()

Public Member Functions inherited from krotos::ResourceLock
	ResourceLock ()

bool	requestAccess (const StringRef id)
	Called by a client to request access to the resource.

bool	hasAccess (const StringRef id) const
	Called by a client to enquire whether it has access to the resource.

void	finishedAccessing (const StringRef id)
	Called by a client to inform the resource that it no longer needs access.

void	setAccessible (bool isAccessible)
	Called by the resource to grant or deny access to clients.

Static Public Member Functions
static String	getParentID (String childKwidgetID)

Protected Member Functions
virtual std::vector< ParameterInfo >	createParameters ()=0

virtual std::unique_ptr< KwidgetProcessor >	createProcessor ()=0

virtual std::unique_ptr< KwidgetGUI >	createGUI ()=0

void	addChildGuis (std::unique_ptr< KwidgetGUI > &parentGui)

CustomParameter *	createAndAddCustomParameter (const String &paramID, const var &value)

template<typename T >
T *	createAndAddCustomParameter (const Identifier &type)
	Create a highly customizable piece of state for this Kwidget by appending a subclass of CustomParameterTree to this Kwidget's state.

void	setKwidgetVersion (const String &kwidgetVersionString)

Protected Attributes
std::vector< Kwidget * >	m_childKwidgets

Private Member Functions
KParameter *	createAndAddParameter (const ParameterInfo &info)

Private Attributes
const String	m_kwidgetType

const String	m_kwidgetID

String	m_kwidgetStateVersion

ValueTree	m_kwidgetTree

ValueTree	m_paramTree

ValueTree	m_customParamTree

ValueTree	m_childTree

ValueTree	m_customDataTree

std::vector< std::shared_ptr< KParameter > >	m_parameters

std::map< String, int >	m_parameterIDs

Array< KwidgetProcessor * >	m_processors

KwidgetProcessor *	m_activeVoice {nullptr}

std::unique_ptr< KwidgetProcessor >	m_initialVoice

OwnedArray< CustomParameter >	m_customParameters

std::map< String, int >	m_customParameterIDs

OwnedArray< CustomParameterTree >	m_customParameterTrees

std::map< Identifier, int >	m_customParameterTreeTypes

OwnedArray< KParameter::AudioListenerObject >	m_parameterCallbacks

bool	m_stateChanging {false}

Member Enumeration Documentation

◆ DragID_Index

enum krotos::Kwidget::DragID_Index

Enumerator
KwidgetID
ParameterID

Constructor & Destructor Documentation

◆ Kwidget()

krotos::Kwidget::Kwidget	(	const String &	kwidgetType,
		const String &	kwidgetID )

Kwidget constructor. This must be called in the constructor of any child classes.

Parameters

kwidgetType	A unique name for the type of Kwidget (e.g. "Sine").
kwidgetID	A unique name for this particular Kwidget instance (e.g. "Sine0").

◆ ~Kwidget()

virtual krotos::Kwidget::~Kwidget ( )

virtualdefault

Destructor.

Member Function Documentation

◆ addChildGuis()

void krotos::Kwidget::addChildGuis ( std::unique_ptr< KwidgetGUI > & parentGui )

protected

◆ addChildKwidget()

void krotos::Kwidget::addChildKwidget ( Kwidget * child )

◆ addModulator()

void krotos::Kwidget::addModulator	(	const String &	paramID,
		Kwidget *	modulator,
		int	modulatorIdx,
		float	depth = 0.99f,
		KAttachment::Polarity	polarity = KAttachment::Polarity::Bipolar )

Add a modulator to one of the parameters owned by this Kwidget.

◆ addParameterCallback()

void krotos::Kwidget::addParameterCallback	(	const String &	paramID,
		std::function< void(float)>	callback )

Add an action to be performed when a specified parameter changes value.

Parameters

paramID	The ID of the parameter to listen to.
callback	The action to be performed when the parameter changes value.

◆ addVersionedParameterCallback()

void krotos::Kwidget::addVersionedParameterCallback	(	StringRef	kwidgetVersionTheParameterChangedIn,
		const String &	paramID,
		std::function< void(float)>	callback )

Add an action to be performed when a specified parameter of a specific kwidget version changes value. This can be used to implement backwards compatibility when older versions of the kwidget state are loaded, and the parameters in newer versions may have been changed or removed.

Parameters

kwidgetVersionTheParameterChangedIn	The version of the Kwidget that introduced the parameter change. For example, if version "1.1" were the new version of the kwidget wherein the parameter was changed, the kwidgetVersion would be "1.1"
paramID	The ID of the parameter to listen to.
callback	The action to be performed when the parameter changes value.

◆ createAndAddCustomParameter() [1/2]

template<typename T >

T * krotos::Kwidget::createAndAddCustomParameter ( const Identifier & type )

protected

Create a highly customizable piece of state for this Kwidget by appending a subclass of CustomParameterTree to this Kwidget's state.

Your subclass should provide the high level methods, type safety and listener actions that your custom data structure needs. You can also use the base CustomParameterTree, however this should only be for simple uses, as the base class only offers a limited selection of wrapper methods around the underlying ValueTree.

Template Parameters

T	The type of the CustomParameterTree subclass to be created.

Parameters

type	A unique Identifier for the custom tree type.

Returns: A pointer to the created CustomParameterTree subclass object. This can be used to get and set tree properties and to set up change listeners.

Note: T must be a subclass of CustomParameterTree.; CustomParameterTrees should have unique types. If you need multiple instances of the same child, create a CustomParameterTree and add them as children.

◆ createAndAddCustomParameter() [2/2]

CustomParameter * krotos::Kwidget::createAndAddCustomParameter	(	const String &	paramID,
		const var &	value )

protected

Create a custom piece of state for this Kwidget. This will create a new ValueTree and append it to this Kwidget's state.

Parameters

paramID	A unique String identifying the new parameter.
value	The initial value of the new parameter.

Returns: A pointer to the new CustomParameter object. This can be used to get and set the parameter value, and to listen for parameter changes.

◆ createAndAddParameter()

KParameter * krotos::Kwidget::createAndAddParameter ( const ParameterInfo & info )

private

◆ createControls()

std::unique_ptr< KwidgetGUI > krotos::Kwidget::createControls ( )

Creates an instance of this Kwidget's UI, which can be added to the main plugin UI to control the parameters of this Kwidget.

◆ createGUI()

virtual std::unique_ptr< KwidgetGUI > krotos::Kwidget::createGUI ( )

protectedpure virtual

◆ createNestedKwidgets()

virtual void krotos::Kwidget::createNestedKwidgets ( KwidgetAudioProcessor & )

inlinevirtual

override so your kwidget can create its own nested kwidgets

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ createParameters()

virtual std::vector< ParameterInfo > krotos::Kwidget::createParameters ( )

protectedpure virtual

◆ createProcessor()

virtual std::unique_ptr< KwidgetProcessor > krotos::Kwidget::createProcessor ( )

protectedpure virtual

◆ createVoice()

std::unique_ptr< KwidgetProcessor > krotos::Kwidget::createVoice ( )

Creates a voice and exports the KwidgetProcessor object for use in an AudioProcessorGraph.

◆ findChildKwidget()

Kwidget * krotos::Kwidget::findChildKwidget ( String kiwdgetID )

◆ flushState()

void krotos::Kwidget::flushState ( )

This function updates this Kwidget's ValueTree object with the current parameter values. It should be called directly before obtaining a copy of the Kwidget's state, such as when saving a preset.

◆ getActiveVoice()

KwidgetProcessor * krotos::Kwidget::getActiveVoice ( ) const

inline

Get a pointer to the most recently used voice.

◆ getChildKwidgets()

std::vector< Kwidget * > & krotos::Kwidget::getChildKwidgets ( )

inline

◆ getCustomParameter() [1/2]

template<typename T >

T * krotos::Kwidget::getCustomParameter ( const Identifier & type )

Get the CustomParameterTree subclass object of the specified type.

Template Parameters

T	The type of the CustomParameterTree subclass to retrieve.

Parameters

type	A unique Identifier for the custom tree type.

Returns: A pointer to the CustomParameterTree subclass object of the specified type, or nullptr if the type is not found.

Note: T must be a subclass of CustomParameterTree.

◆ getCustomParameter() [2/2]

CustomParameter * krotos::Kwidget::getCustomParameter ( const String & parameterID )

Get a CustomParameter belonging to this Kwidget's KwidgetProcessor.

◆ getCustomParameterTree()

CustomParameterTree * krotos::Kwidget::getCustomParameterTree ( const Identifier & type )

Get a CustomParameterTree belonging to this Kwidget.

Parameters

type	The name ("type") of the CustomParameterTree to find

Returns: A pointer to the CustomParameterTree object. You can use this to assign listeners etc.

◆ getDragID()

StringArray krotos::Kwidget::getDragID ( const String & parameterID )

Returns a String Array containing the current KwidgetID and ParameterID. The enum DragID_Index should be used to index the elements within this array

◆ getGuiName()

virtual String krotos::Kwidget::getGuiName ( int )

inlinevirtual

override to return the names of the Gui representation

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ getKwidgetID()

const String & krotos::Kwidget::getKwidgetID ( ) const

Get a reference to the unique Kwidget ID.

◆ getKwidgetLabel()

const String & krotos::Kwidget::getKwidgetLabel ( )

virtual

Returns a user facing label for the kwidget. By default, this returns the kwidget type. Override this to return a neatly formatted string for a kwidget.

Reimplemented in krotos::Kwidget_MacroSlider.

◆ getKwidgetType()

const String & krotos::Kwidget::getKwidgetType ( ) const

Get a reference to the type of the Kwidget.

◆ getKwidgetVersion()

String krotos::Kwidget::getKwidgetVersion ( ) const

◆ getKwidgetVersionFromCurrentState()

const String & krotos::Kwidget::getKwidgetVersionFromCurrentState ( ) const

Get the version number of the current loaded state of this kwidget

Returns: string of the two digit kwidget version number e.g. "1.0"

◆ getNumModulators()

int krotos::Kwidget::getNumModulators ( ) const

Get the number of Modulator objects used by this Kwidget.

◆ getNumVoices()

int krotos::Kwidget::getNumVoices ( ) const

Get the total number of voices.

◆ getParameter()

KParameter * krotos::Kwidget::getParameter ( const String & parameterID ) const

noexcept

Get a raw pointer to a KParameter belonging to this Kwidget's KwidgetProcessor. Useful for low overhead direct parameter access.

Parameters

parameterID The ID of the parameter to retrieve.

Returns: A raw pointer to the KParameter.

Warning: The returned pointer is owned by this Kwidget. Avoid using it in any context outside of the Kwidget lifetime, for example attaching Listeners. For that, use getParameterToAttach and std::weak_ptr instead.

◆ getParameters()

const std::vector< std::shared_ptr< KParameter > > & krotos::Kwidget::getParameters ( ) const

Get the list of KParameters owned by this Kwidget.

◆ getParameterToAttach()

std::shared_ptr< KParameter > krotos::Kwidget::getParameterToAttach ( const String & parameterID ) const

noexcept

Get a shared pointer to a KParameter, for use with KParameter::Listener objects and situations where the parameter lifetime goes beyond local scope.

Parameters

parameterID The ID of the parameter to retrieve.

Returns: A shared_ptr to the KParameter.

◆ getParentID()

String krotos::Kwidget::getParentID ( String childKwidgetID )

static

Get the ID of the parent of a nested kwidget

Parameters

[in] childKwidgetID String ID of the child kwidget

Returns: The ID for the parent kwidget, or empty if no parent was found

◆ getState()

const ValueTree & krotos::Kwidget::getState ( )

Get a const reference to the ValueTree that this Kwidget is using to hold its state.

◆ getTemplateID()

int krotos::Kwidget::getTemplateID ( )

Returns the ID of this kwidgets parent template, if it has one. If not, returns -1.

◆ getVoice()

KwidgetProcessor * krotos::Kwidget::getVoice ( int idx ) const

Get a pointer to one of this Kwidget's voices.

◆ init()

void krotos::Kwidget::init ( )

Initialises the parameters of the Kwidget. This should be called in the first line of the constructor of any concrete child classes.

◆ isAChildKwidget()

bool krotos::Kwidget::isAChildKwidget ( )

◆ isActive()

bool krotos::Kwidget::isActive ( int voiceIdx )

virtual

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ isModulator()

bool krotos::Kwidget::isModulator ( ) const

Returns true if this Kwidget is a modulator.

◆ isStateChanging()

bool krotos::Kwidget::isStateChanging ( )

inline

override to return a pointer to the primary Gui for this kwidget

◆ noteCleared()

void krotos::Kwidget::noteCleared ( int voiceIdx )

virtual

Send a message to a particular voice that it has been turned off and will receive no more calls to its process function.

Parameters

voiceIdx The index of the voice that is being cleared.

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ noteOff()

void krotos::Kwidget::noteOff	(	int	voiceIdx,
		float	velocity )

virtual

Send a 'note off' message to a particular voice. Note: Note on and off messages do not by default get sent to child Kwidgets parents of child kwidgets can override these methods and pass the messages to their childern if required If you do override, remember to call the base class first from your new overridden method

Parameters

voiceIdx	The index of the voice you would like to turn on.
velocity	The velocity of the note event.

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ noteOn()

void krotos::Kwidget::noteOn	(	int	voiceIdx,
		int	midiNote,
		float	velocity )

virtual

Send a 'note on' message to a particular voice. Note: Note on and off messages do not by default get sent to child Kwidgets parents of child kwidgets can override these methods and pass the messages to their childern if required If you do override, remember to call the base class first from your new overridden method

Parameters

voiceIdx	The index of the voice you would like to turn on.
midiNote	The integer value of the MIDI note to use.
velocity	The velocity of the note event.

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ notifyAllParametersListeners()

void krotos::Kwidget::notifyAllParametersListeners ( )

Call every parameter's value changed listeners with their current values.

◆ numGUIImplementations()

virtual size_t krotos::Kwidget::numGUIImplementations ( )

inlinevirtual

Reimplemented in krotos::Kwidget_CoreEngine, and krotos::Kwidget_Reformer.

◆ removeChildKwidgetFromTree()

void krotos::Kwidget::removeChildKwidgetFromTree ( String kwidgetID )

◆ removeModulator()

void krotos::Kwidget::removeModulator	(	const String &	paramID,
		Kwidget *	modulator,
		int	modulatorIdx )

Remove a modulator from one of the parameters owned by this Kwidget.

◆ setKwidgetVersion()

void krotos::Kwidget::setKwidgetVersion ( const String & kwidgetVersionString )

protected

Set the kwidget version, by default this is "1.0" This should be used when a kwidget is changed in such a way that it is no longer compatible with a previous version.

Parameters

kwidgetVersionString a version number with two digits separated by a period e.g. "1.1"

◆ setModulatorDepth()

void krotos::Kwidget::setModulatorDepth	(	const String &	paramID,
		Kwidget *	modulator,
		int	modulatorIdx,
		float	depth )

◆ setModulatorPolarity()

void krotos::Kwidget::setModulatorPolarity	(	const String &	paramID,
		Kwidget *	modulator,
		int	modulatorIdx,
		KAttachment::Polarity	polarity )

◆ setState()

void krotos::Kwidget::setState	(	const ValueTree &	newState,
		KwidgetAudioProcessor &	processor )

virtual

Set the state of the Kwidget using a ValueTree (probably one obtained from the getState() function).

Member Data Documentation

◆ m_activeVoice

KwidgetProcessor* krotos::Kwidget::m_activeVoice {nullptr}

private

◆ m_childKwidgets

std::vector<Kwidget*> krotos::Kwidget::m_childKwidgets

protected

◆ m_childTree

ValueTree krotos::Kwidget::m_childTree

private

◆ m_customDataTree

ValueTree krotos::Kwidget::m_customDataTree

private

◆ m_customParameterIDs

std::map<String, int> krotos::Kwidget::m_customParameterIDs

private

◆ m_customParameters

OwnedArray<CustomParameter> krotos::Kwidget::m_customParameters

private

◆ m_customParameterTrees

OwnedArray<CustomParameterTree> krotos::Kwidget::m_customParameterTrees

private

◆ m_customParameterTreeTypes

std::map<Identifier, int> krotos::Kwidget::m_customParameterTreeTypes

private

◆ m_customParamTree

ValueTree krotos::Kwidget::m_customParamTree

private

◆ m_initialVoice

std::unique_ptr<KwidgetProcessor> krotos::Kwidget::m_initialVoice

private

◆ m_kwidgetID

const String krotos::Kwidget::m_kwidgetID

private

◆ m_kwidgetStateVersion

String krotos::Kwidget::m_kwidgetStateVersion

private

◆ m_kwidgetTree

ValueTree krotos::Kwidget::m_kwidgetTree

private

◆ m_kwidgetType

const String krotos::Kwidget::m_kwidgetType

private

◆ m_parameterCallbacks

OwnedArray<KParameter::AudioListenerObject> krotos::Kwidget::m_parameterCallbacks

private

◆ m_parameterIDs

std::map<String, int> krotos::Kwidget::m_parameterIDs

private

◆ m_parameters

std::vector<std::shared_ptr<KParameter> > krotos::Kwidget::m_parameters

private

◆ m_paramTree

ValueTree krotos::Kwidget::m_paramTree

private

◆ m_processors

Array<KwidgetProcessor*> krotos::Kwidget::m_processors

private

◆ m_stateChanging

bool krotos::Kwidget::m_stateChanging {false}

private

The documentation for this class was generated from the following files:

krotos_kwidget/kwidget/Kwidget.h
krotos_kwidget/kwidget/Kwidget.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Member Enumeration Documentation

◆ DragID_Index

Constructor & Destructor Documentation

◆ Kwidget()

◆ ~Kwidget()

Member Function Documentation

◆ addChildGuis()

◆ addChildKwidget()

◆ addModulator()

◆ addParameterCallback()

◆ addVersionedParameterCallback()

◆ createAndAddCustomParameter() [1/2]

◆ createAndAddCustomParameter() [2/2]

◆ createAndAddParameter()

◆ createControls()

◆ createGUI()

◆ createNestedKwidgets()

◆ createParameters()

◆ createProcessor()

◆ createVoice()

◆ findChildKwidget()

◆ flushState()

◆ getActiveVoice()

◆ getChildKwidgets()

◆ getCustomParameter() [1/2]

◆ getCustomParameter() [2/2]

◆ getCustomParameterTree()

◆ getDragID()

◆ getGuiName()

◆ getKwidgetID()

◆ getKwidgetLabel()

◆ getKwidgetType()

◆ getKwidgetVersion()

◆ getKwidgetVersionFromCurrentState()

◆ getNumModulators()

◆ getNumVoices()

◆ getParameter()

◆ getParameters()

◆ getParameterToAttach()

◆ getParentID()

◆ getState()

◆ getTemplateID()

◆ getVoice()

◆ init()

◆ isAChildKwidget()

◆ isActive()

◆ isModulator()

◆ isStateChanging()

◆ noteCleared()

◆ noteOff()

◆ noteOn()

◆ notifyAllParametersListeners()

◆ numGUIImplementations()

◆ removeChildKwidgetFromTree()

◆ removeModulator()

◆ setKwidgetVersion()

◆ setModulatorDepth()

◆ setModulatorPolarity()

◆ setState()

Member Data Documentation

◆ m_activeVoice

◆ m_childKwidgets

◆ m_childTree

◆ m_customDataTree

◆ m_customParameterIDs

◆ m_customParameters

◆ m_customParameterTrees

◆ m_customParameterTreeTypes

◆ m_customParamTree

◆ m_initialVoice

◆ m_kwidgetID

◆ m_kwidgetStateVersion
